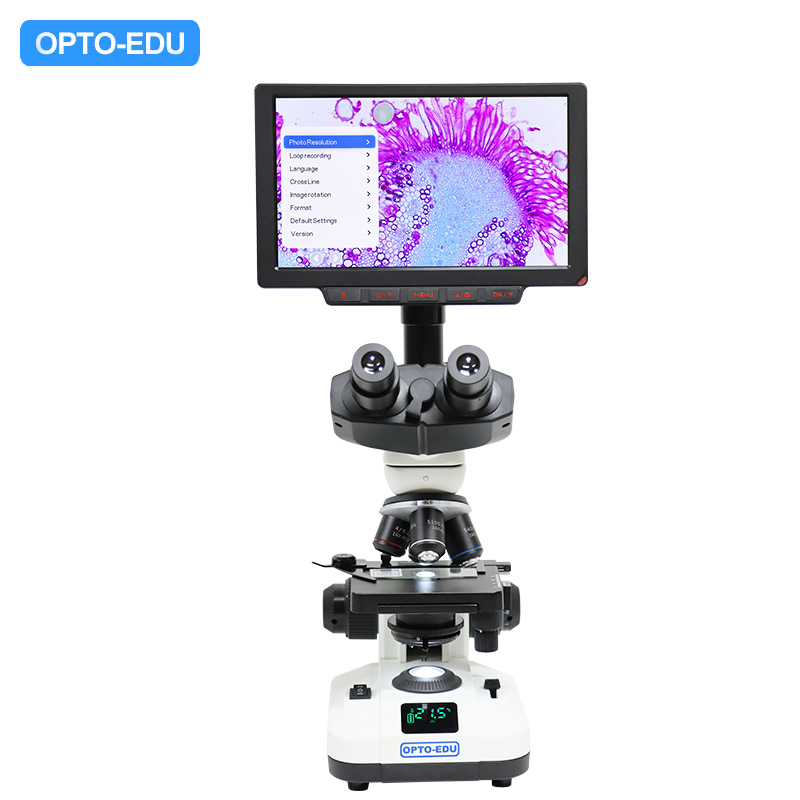

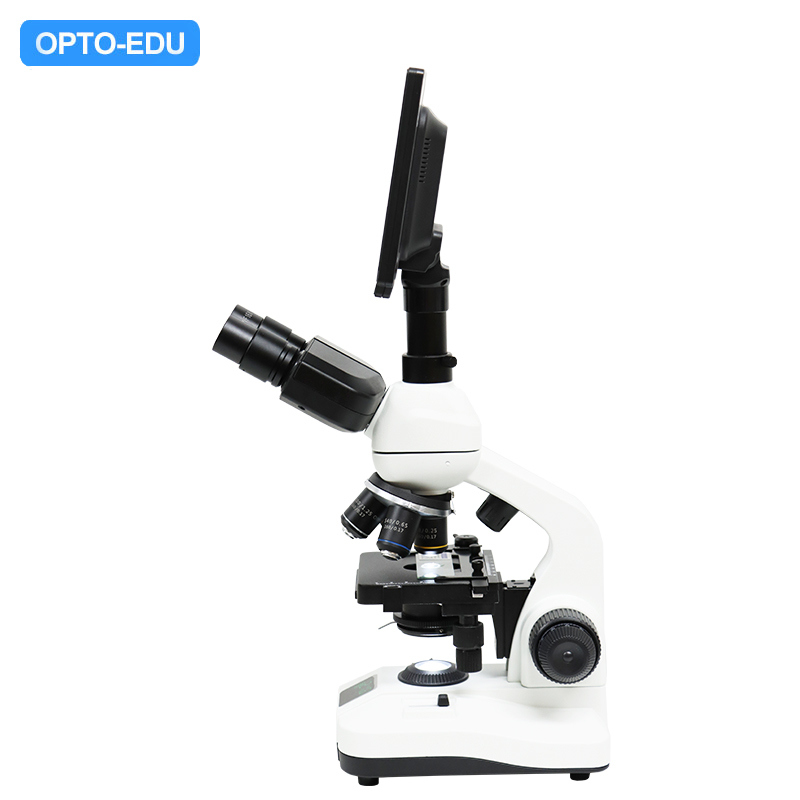

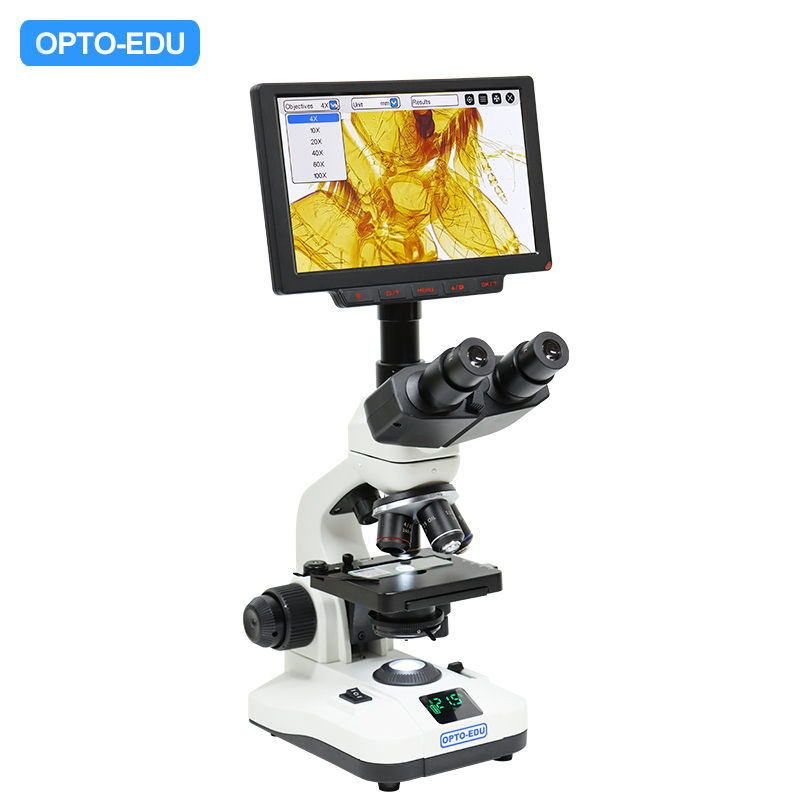

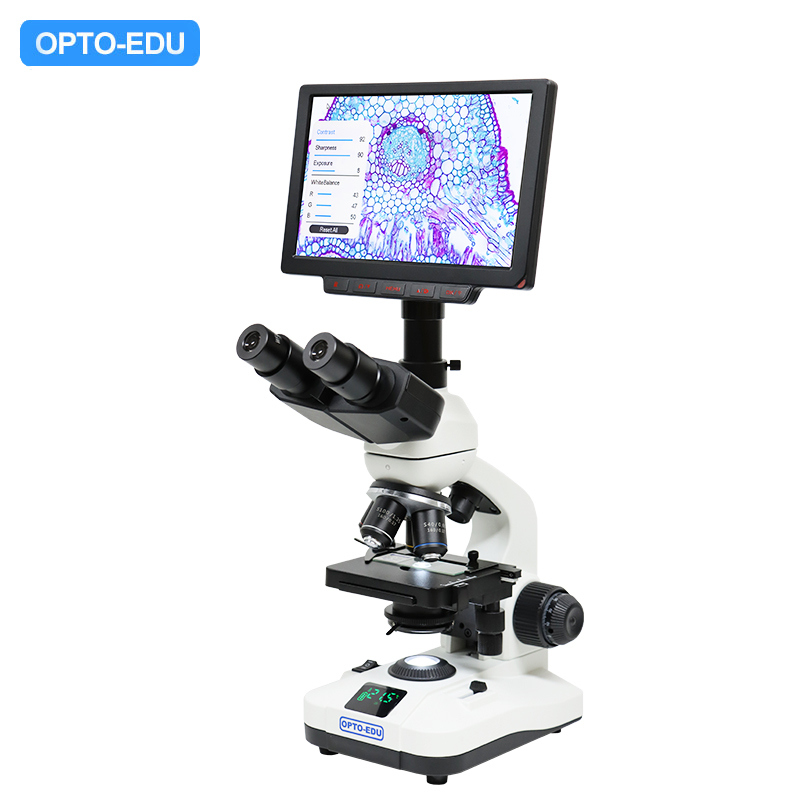

OPTO-EDU A33.5110 9" LCD Digital Microscope with 12M Resolution WF10x and WF16x Eyepieces
OPTO-EDU A33.5110 9" LCD Digital Microscope 12M WIFI HDMI USB TF Card
Key Features
| Feature | Specification |
|---|---|
| Magnification |
Optical: 40x~1600x Digital: 52.5x (on 9" LCD) Total: 105x-2625x (on 9" LCD) |
| LCD Display |
9" Digital LCD Screen Resolution: 1024×600 Shows working stage temperature, battery level, charging status, and LED indicators |
| Camera |
Model: A59.5122-9C Sensor: 2K 4.0M CMOS 1/3" Resolution: Photo 2M/5M/8M/12M, Video 1080p Pixel Size: 2µm × 2µm |
| Connectivity |
2.4G WIFI output to Android/iOS devices 1080P HDMI output to monitor Type-C USB-UVC output to computer USB port for mouse/keyboard TF card slot (8GB included, supports up to 64GB) |
Microscope Specifications
Body: Solid full metal construction
Head: Trinocular, 30° incline, 360° rotation, right diopter adjustable ±5°
Eyepieces: WF10x/16mm ×2, WF16x/13mm ×2
Nosepiece: 4-hole revolving
Objectives: Achromatic 4x, 10x, 40x(S), 100x(O,S)
Stage: Double layer mechanical, 95×105mm, moving range 20×50mm
Focusing: Coaxial coarse & fine, fine division 0.008mm, range 0-15mm
Condenser: Abbe N.A.1.25 with iris diaphragm
Illumination: Dual LED (bottom 1W, top 0.06W), both adjustable, 50,000 hour lifespan
Power & Accessories
- Power adapter: Input AC100-240V, Output DC 5V2A (powers both microscope and LCD camera)
- 18650 rechargeable battery 2000mAh (not included for air shipment)
- Packing list includes: Microscope, LCD digital camera, power adapter, instruction manual, dust cover
- Optional aluminum case available
Dimensions & Weight
Main Body: 19×14×48cm, 3.5kg
Standard Package: 31×21×39cm, 4.5kg (carry bag & carton)
Optional Package: 45×35×22cm, 6.0kg (aluminum case & carton)
